ADP Bi-Directional Connector: Available Data Points

The ADP Bi-Directional Connector can send a variety of employee data points from ClearCompany to ADP during the New Hire Transfer process. The list of available data points varies across different ADP & ClearCompany products and connector versions. This guide details what data can be sent to ADP based on your configuration and where that data is typically sourced from within ClearCompany.

CALLOUT INFO: Please note that only raw data collected through forms and onboarding activities is sent through this integration. If file copies of the new hire's documents are needed in ADP, download the completed form in ClearCompany and upload it to ADP.

In this article:

Types of Data Sources
Available Data Points by ClearCompany Product
Recruiting Only
Recruiting + Onboarding



Types of Data Sources

New hire data is typically collected during Recruiting activities like Applications and Onboarding activities such as completing onboarding forms. Employment data, like the new hire's Role/Job Title, Department, and Office/Location, is typically determined by the selections made on the Requisition or Onboarding Packet associated with the new hire.  Tip: Click on each image to expand the view.

Requisition Information	Onboarding Packet	Stock ADP Personal Data Sheet	Stock ADP Direct Deposit Form

Available Data Points by ClearCompany Product

As mentioned above, employee data is commonly collected during Recruiting and Onboarding activities. Therefore, clients utilizing both the ClearCompany Recruiting and Onboarding modules will be able to transfer more employee data to ADP through the Bi-Directional Connector. See the table below for more details.

Recruiting-Only	Recruiting + Onboarding
Personal Data Employment Data	Personal Data Employment Data Tax Data (State and Federal) Direct Deposit Data Emergency Contact Data

Open the menus below, relative to the ClearCompany modules your organization uses, to view the full list of data points that can be sent. The fields with an asterisk * are the minimum required fields in order for the new hire transfer to be successful.



Recruiting Only

CALLOUT INFO: Please note, the Bi-Directional Connector for ADP Workforce Now customers has an enhanced version which expands the list of data that can be sent from ClearCompany to ADP.

The fields with an asterisk * are the minimum required fields in order for the new hire transfer to be successful.

Field Name in ADP	ClearCompany Data Source	Original Connector	Enhanced Connector
Hire Status*	Fixed Value: In Progress
Hire Template*	Fixed Value or Req Custom Field
Company Code*	Requisition Custom Field
Job Title	External Identifier - Requisition - Role ID
Home Department	External Identifier - Requisition - Department ID
Location	External Identifier - Requisition - Office ID
EEOC Job Classification Code	System Field: Requisition EEO Type
ReportsTo	External Identifier - Req Hiring Manager ADP Position ID (HM assigned to Requisition)
Hire/Rehire Date*	Offer Letter or Requisition Custom Field
Reason for Hire	Fixed Value: New
First Name*	System Field: First Name
Last Name*	System Field: Last Name
Tax ID	System Field: SSN (US) or SIN (Canada)
Address 1	System Field: Address Line 1
Address 2	System Field: Address Line 2
Address City	System field: City
Address State / Province / Territory	System Field: State
Address Zip/Postal Code	System Field: Postal Code
Address Country	System Field: Country Code
Personal Cell Country Code	Fixed Value: 1
Personal Cell Area Code	System Field: Phone Number Area Code (primary)
Personal Cell Dial Number	System Field: Phone Number Dial Number (primary)
Home Phone Country Code	Fixed Value: 1
Home Phone Area Code	System Field: Phone Number Area Code (secondary)
Home Phone Dial Number	System Field: Phone Number Dial Number (secondary)
Home Email	System field: Email Address
Gender	System field: Gender
Ethnicity / Race ID Method	Fixed Value: SID
Race	System Field: Race/Ethnicity
Ethnicity	System Field: Race/Ethnicity
Pay Frequency	Offer Letter or Requisition Custom Field
Pay Period Rate Amount	Offer Letter or Requisition Custom Field
Daily Rate Amount	Offer Letter or Requisition Custom Field
Hourly Rate Amount	Offer Letter or Requisition Custom Field

Recruiting + Onboarding

Onboarding Clients V1 and V2

Field Name in ADP	ClearCompany Data Source
Hire Template*	Fixed Value or Req Custom Field
Job Title	External Identifier - Role ID
Pay Grade	ADP Personal Data Sheet
Home Department	External Identifier - Department ID
Location	External Identifier - Office ID
FLSA	ADP Personal Data Sheet
Hire/Rehire Date*	System Field: Hire Date
Reason for Hire/Rehire	Fixed Value: New
Tax ID	System Field: SSN (US) or SIN (Canada)
First Name*	System Field: First Name
Middle Name	ADP Personal Data Sheet
Last Name*	System Field: Last Name
Preferred Name	ADP Personal Data Sheet
Gender	ADP Personal Data Sheet
Birth Date	ADP Personal Data Sheet
Address 1	System Field: Address Line 1
Address 2	ADP Personal Data Sheet
Address 3	ADP Personal Data Sheet
Address City	System field: City
Address State / Province / Territory	System Field: State (US) OR ADP Personal Data Sheet (Canada)
Address County	ADP Personal Data Sheet
Address Zip/Postal Code	System Field: Postal Code
Address Country	Fixed Value: US or Canada
Home Phone Country Code	Fixed Value: 1
Home Phone Area Code	System Field: Phone Number Area Code (secondary)
Home Phone Dial Number	System Field: Phone Number Dial Number (secondary)
Personal Cell Country Code	Fixed Value: 1
Personal Cell Area Code	System Field: Phone Number Area Code (primary)
Personal Cell Dial Number	System Field: Phone Number Dial Number (primary)
Home Email*	System field: Email Address
Marital Status	ADP Personal Data Sheet
Marital Status Effective Date	ADP Personal Data Sheet
Ethnicity / Race ID Method	Fixed Value: SID
Race	System Field: Race/Ethnicity
Ethnicity	System Field: Race/Ethnicity
Company Code*	ADP Personal Data Sheet
Pay Frequency	ADP Personal Data Sheet
Pay Period Rate Amount	ADP Personal Data Sheet
Daily Rate Amount	ADP Personal Data Sheet
Hourly Rate Amount	ADP Personal Data Sheet
Worker Type Code	ADP Personal Data Sheet

Onboarding Clients V2 Only

Tax data (meaning any Federal Tax or State Tax fields) are not available for Canadian hires. International Hires do not support Tax or Direct Deposit data.

Field Name in ADP	ClearCompany Data Source
Hire Status*	Fixed Value: In Progress
EEOC Job Classification Code	System Field: Requisition EEO Type
ReportsTo	External Identifier - Onboarding Manager ADP Position ID (HM assigned to OB Packet)
Benefits Eligibility Class	ADP Personal Data Sheet
Federal Tax Marital Status	Federal W-4
Federal Tax Deductions Amount	Federal W-4
Federal Tax Dependents Amount	Federal W-4
Federal Tax Multiple Jobs	Federal W-4
Federal Tax Other Income	Federal W-4
Federal Tax Additional Tax Amount	Federal W-4
Do not calculate Federal Income Tax	Federal W-4
State Tax Worked In State	Fixed Value: True
State Tax Filing Status	State Tax Form Filing Status
State Tax Exemptions	State Tax Form Allowances/Withholding
State Tax State Code	System Field: Office State
State Tax Additional Tax Amount	State Tax Form Additional Withholding

ATS Only Clients V1 and V2

Please note that Emergency Contact and Direct Deposit data are not available for ATS clients.

Field Description	ClearCompany Data Source
Hire Status*	Fixed Value: In Progress
Job Title	External Identifier - Requisition - Role ID
Home Department	External Identifier - Requisition - Department ID
Location	External Identifier - Requisition - Office ID
Hire/Rehire Date*	Offer Letter or Requisition Custom Field
Reason for Hire/Rehire	Fixed Value: New
First Name*	System Field: First Name
Last Name*	System Field: Last Name
Address 1	System Field: Address Line 1
Address 2	System Field: Address Line 2
Address City	System field: City
Address State / Province / Territory	System Field: State
Address Zip/Postal Code	System Field: Postal Code
Address Country	System Field: Country Code
Personal Cell Country Code	Fixed Value: 1
Personal Cell Area Code	System Field: Phone Number Area Code (primary)
Personal Cell Dial Number	System Field: Phone Number Dial Number (primary)
Home Phone Country Code	Fixed Value: 1
Home Phone Area Code	System Field: Phone Number Area Code (secondary)
Home Phone Dial Number	System Field: Phone Number Dial Number (secondary)
Home Email	System field: Email Address
Pay Frequency	Offer Letter or Requisition Custom Field
Pay Period Rate Amount	Offer Letter or Requisition Custom Field
Daily Rate Amount	Offer Letter or Requisition Custom Field
Hourly Rate Amount	Offer Letter or Requisition Custom Field

ATS Only Clients V2

Field Description	ClearCompany Data Source
Hire Template*	Fixed Value or Req Custom Field
EEOC Job Classification Code	System Field: Requisition EEO Type
ReportsTo	External Identifier - Req Hiring Manager ADP Position ID (HM assigned to Requisition)
Gender	System field: Gender
Ethnicity / Race ID Method	Fixed Value: SID
Race	System Field: Race/Ethnicity
Ethnicity	System Field: Race/Ethnicity
Tax ID	System Field: SSN (US) or SIN (Canada)
Company Code*	Requisition Custom Field

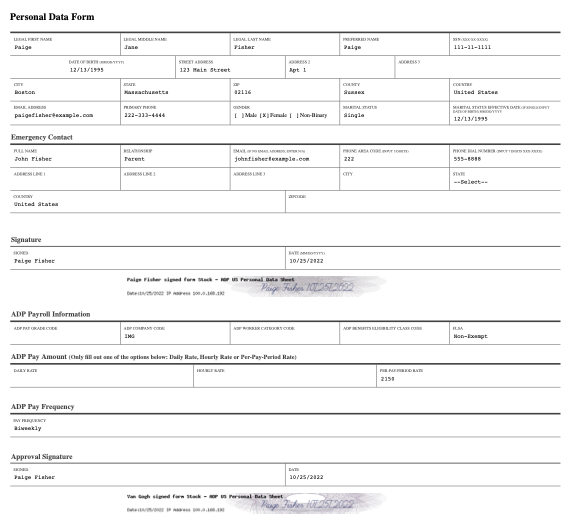

Emergency Contact Data V1, V2, Vantage

This information sends to ADP after the New Hire template is completed.

Field Name in ADP	ClearCompany Data Source
Emergency Contact Name	Stock ADP Personal Data Sheet
Relationship	Stock ADP Personal Data Sheet
Effective Date	Hire Date
Country	Stock ADP Personal Data Sheet
State	Stock ADP Personal Data Sheet
Address line 1	Stock ADP Personal Data Sheet
Address line 2	Stock ADP Personal Data Sheet
Address line 3	Stock ADP Personal Data Sheet
Zip code	Stock ADP Personal Data Sheet
City	Stock ADP Personal Data Sheet
Contact Email Address	Stock ADP Personal Data Sheet
Phone Type	Fixed Value: Home Phone
Home Phone Area Code	Stock ADP Personal Data Sheet
Home Phone Country Code	Stock ADP Personal Data Sheet
Home Phone Dial Number	Stock ADP Personal Data Sheet

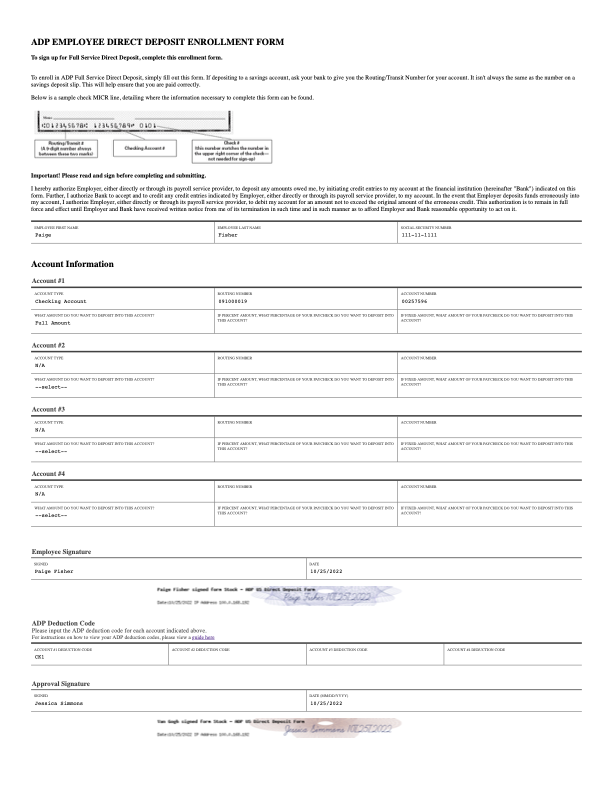

Direct Deposit Data V1, V2, Vantage

This information sends to ADP after the New Hire template is completed. Please note that we can send these data points for up to 4 deposit accounts.

Field Name in ADP	ClearCompany Data Source
Effective Date	ADP Direct Deposit Form (US or Canada)
Account Type	ADP Direct Deposit Form (US or Canada)
Account Number	ADP Direct Deposit Form (US or Canada)
Routing Number (US Only)	ADP Direct Deposit Form (US or Canada)
Bank Number (Canada Only)	ADP Direct Deposit Form (US or Canada)
Branch Number (Canada Only)	ADP Direct Deposit Form (US or Canada)
Send Entire/Remaining Amount	ADP Direct Deposit Form (US or Canada)
Percent to Deposit	ADP Direct Deposit Form (US or Canada)

Direct Deposit Data V2

Field Name in ADP	ClearCompany Data Source
Fixed Amount to Deposit	ADP Direct Deposit Form (US or Canada)

Additional Fields

These additional fields are available upon request to add to your integration but are not included by default.

• Manager Position
• Business Unit
• Home Cost Number
• Work Phone Number Fields
• Work Cell Fields
• Work Email
• Associate ID
• Pay Group
• Work Address Fields
• Works from Home
• Correspondence Language
• Other Personal Address Fields
• Medicare Medicaid Name Code
• Medicare/Medicaid Covered
• Tobacco User
• Section 503 Disability Status Indicator*
• Section 503 Disability Status*
• FLSA Overtime
• Data Control Name
• Data Control Code
• Clock Name
• Clock Code
• Tipped Employee
• Union Code
• Standard Hours Quantity
• ACA Benefit Status
• ACA Benefit Eligibility Date

*These fields can only be added for clients who are on the V2 version of the ADP integration. Please contact your Customer Success Manager to confirm your integration version and discuss the steps of the migration process.

ADP Vantage Worker Hire

Field Name in ADP

ClearCompany Data Source

ADP Vantage Federal and State Tax

Field Name in ADP

ClearCompany Data Source
